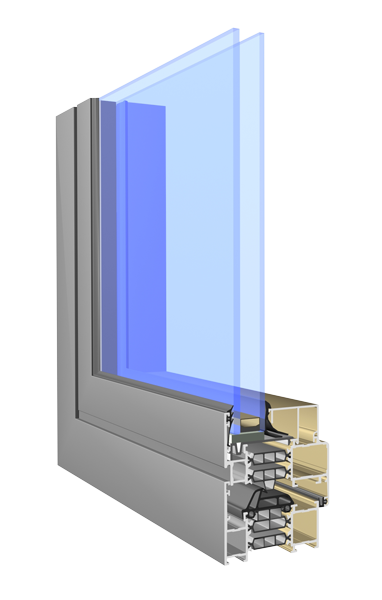

Three-chamber window-door system
This system is included in the offer of ARTDEKO as an optimum solution for outdoor constructions in the environment with increased demands for thermal and acoustic insulation of windows (insulated new buildings or renovated buildings). Construction profile depth of the window and door frames, walls and door wings is 75 mm, depth of window wings amounts to 84 mm, wall thickness of profiles ranges from 1.7 to 2.0 mm, glass thickness is 14–61 mm. A wide range of accessories is also available.
Technical specifications
German fittings allow for a wide variation of methods of opening windows and doors. There is a choice of various door toe-board heights and threshold options. The offer includes a number of accessories (balls, handles, automatic closing systems, wing holders, blocking systems for passive door wings, three-point fasteners, electric locks, mailboxes, etc.).
• Three-chamber window-door system
• The system belongs to the 1.0 RMG group according to DIN 4108 material standard
• Breakage of a thermal bridge by 34 mm non-conducting polyamide strips with fibreglass in cellular form
